Building Continuous Delivery (CD) Pipelines

Creating a Pipeline Job

1. Have a look at the repository bmuschko/todo-spring-boot on GitHub. The repository already contains the build definition in the form of a Jenkinsfile. Identify each of the steps.
2. In Jenkins, set up the credentials SONARCLOUD_TOKEN and HEROKU_API_KEY if they don't exist yet.
3. Create a new multi-branch pipeline job for the repository.
4. The initial build is triggered automatically. Have a look at the pipeline in the standard view and its console output.
5. Install the Blue Ocean plugin.
6. Open the Blue Ocean pipeline visualization for the job. Manually trigger the deployment step. Open a browser with the deployed application on Heroku.
7. Create a new branch named bugfix and push it to the remote repository. The code should be based off of master.
8. Select "Scan Multibranch Pipeline Now". The job should build the new branch.

Show Solution

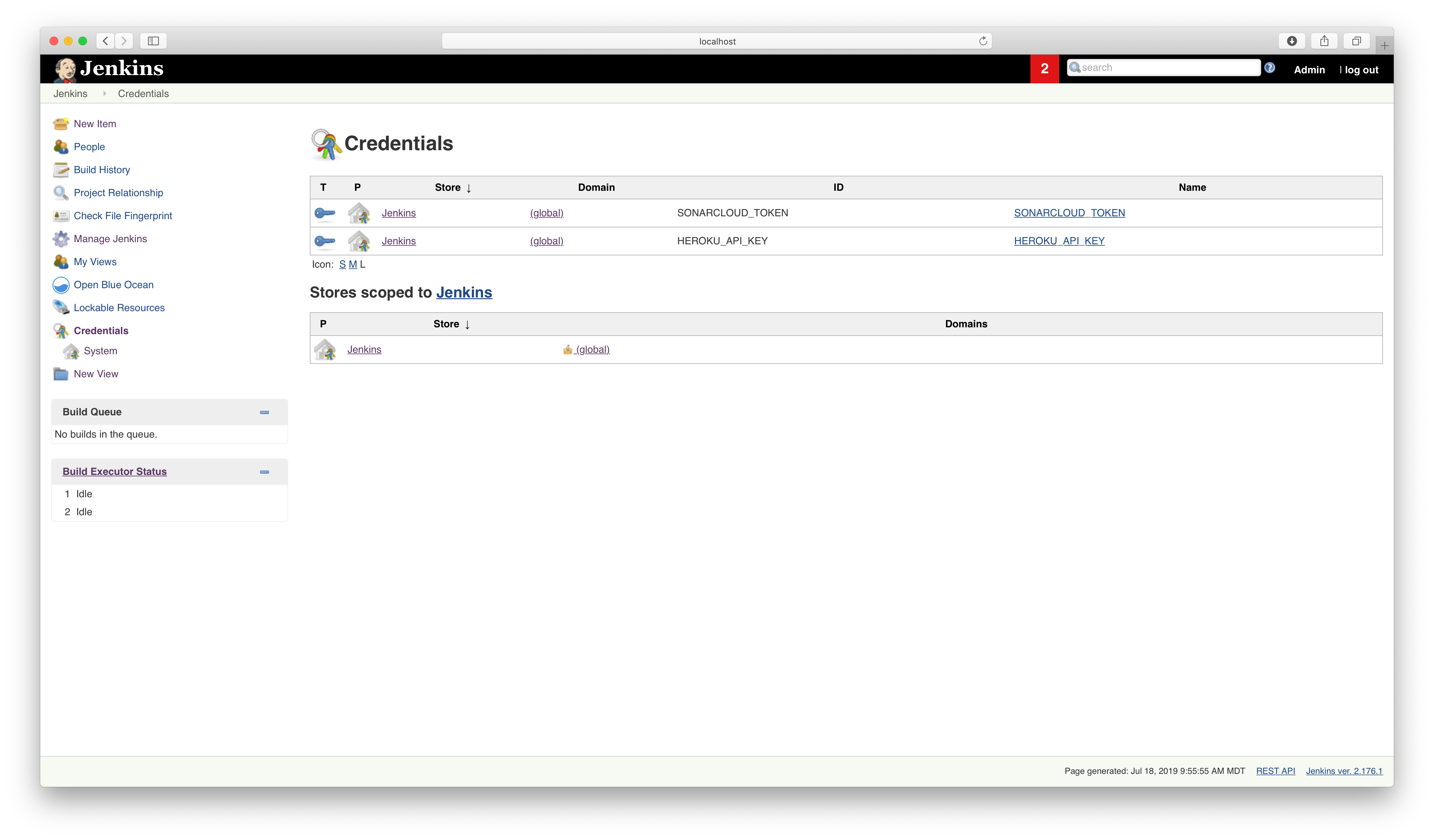

The created credentials required for the job.

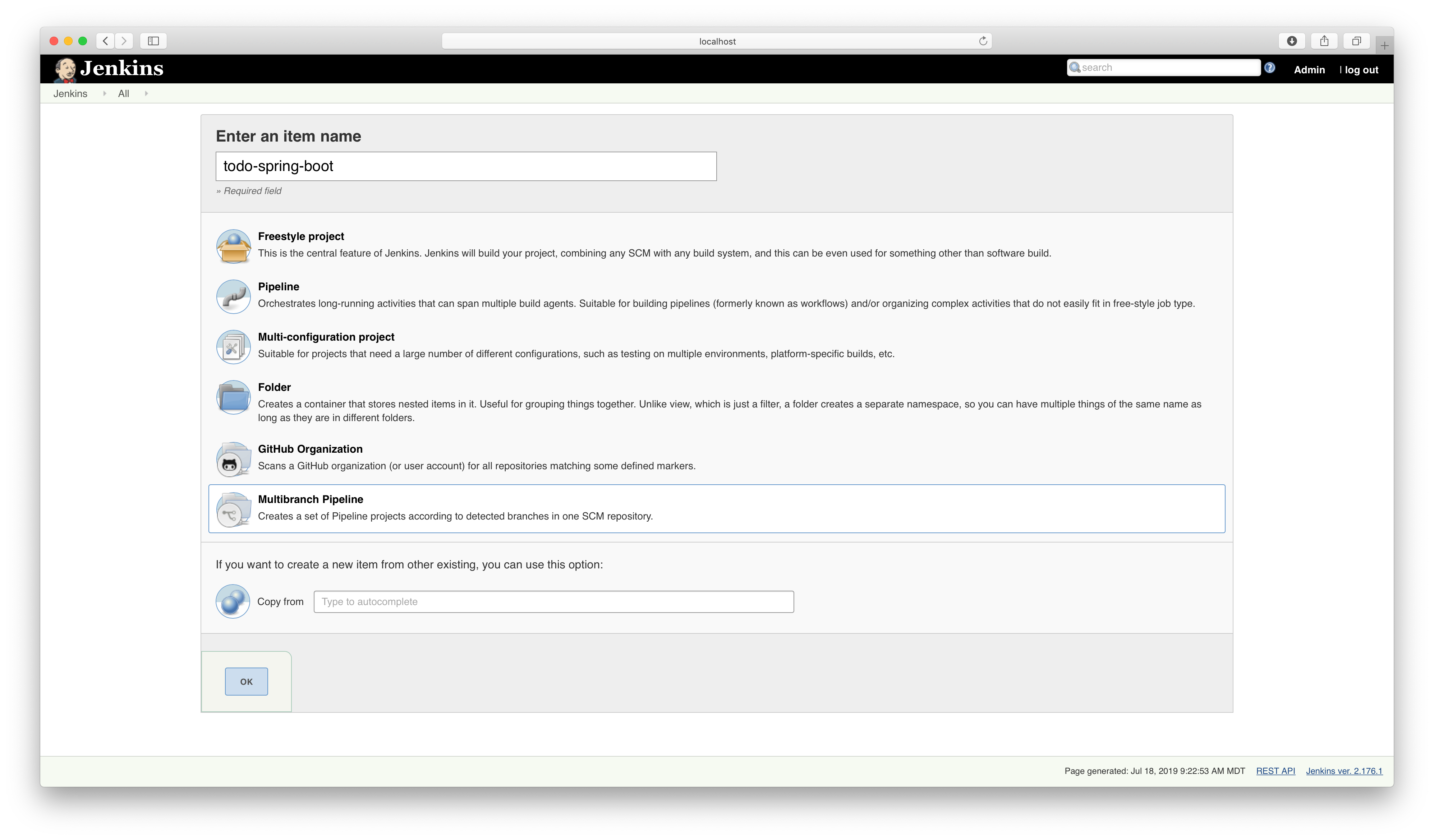

Create a new item from the dashboard.

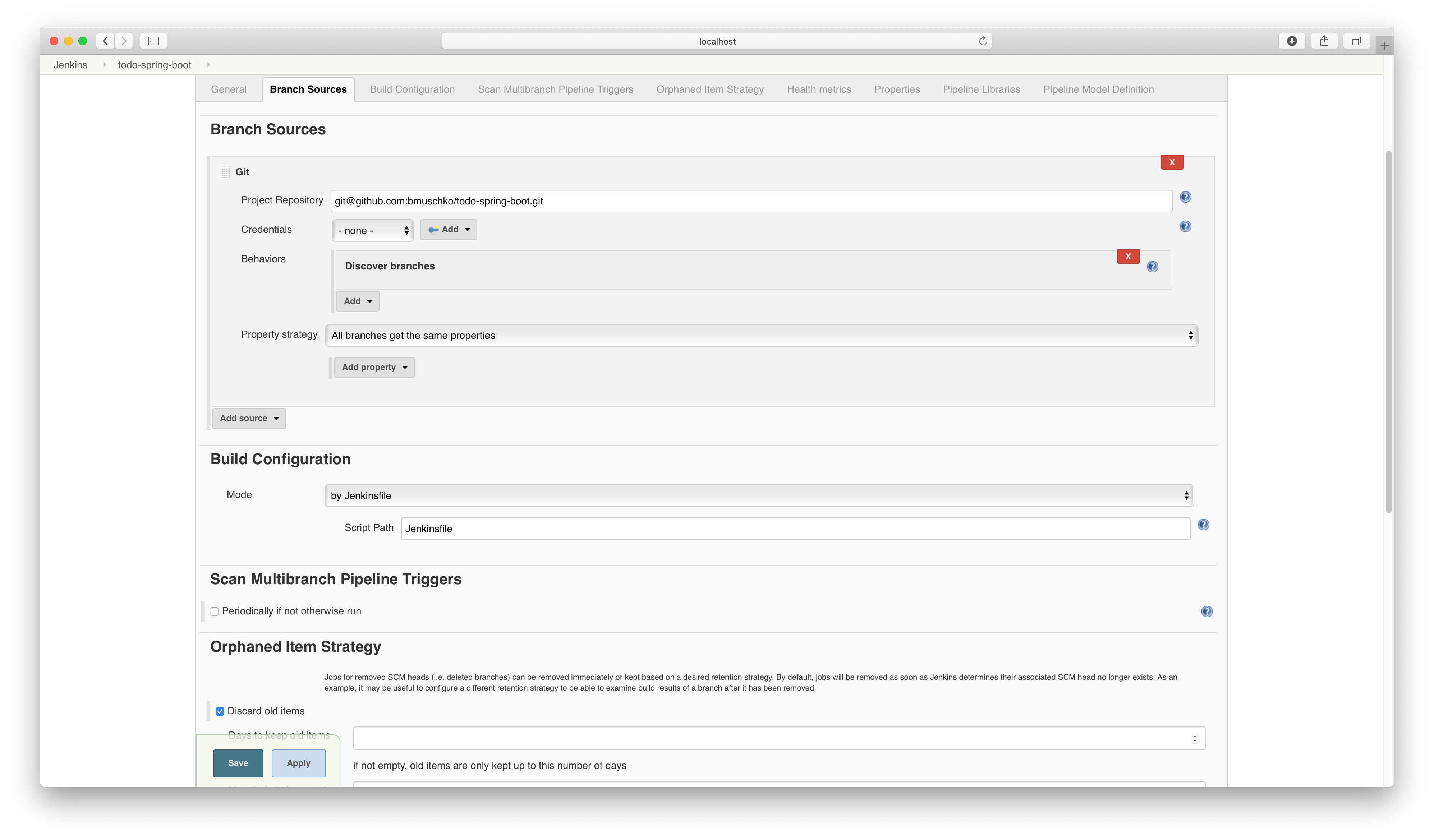

Point the job to the SCM.

Upon pressing the OK button, the job will scan all available branches in the repository.

Started
[Thu Jul 18 09:23:53 MDT 2019] Starting branch indexing...
 > git --version # timeout=10
 > git ls-remote --symref git@github.com:bmuschko/todo-spring-boot.git # timeout=10
Creating git repository in /Users/bmuschko/.jenkins/caches/git-a68a5e08a54549aaef01872e9adb6218
 > git init /Users/bmuschko/.jenkins/caches/git-a68a5e08a54549aaef01872e9adb6218 # timeout=10
Setting origin to git@github.com:bmuschko/todo-spring-boot.git
 > git config remote.origin.url git@github.com:bmuschko/todo-spring-boot.git # timeout=10
Fetching & pruning origin...
Listing remote references...
 > git config --get remote.origin.url # timeout=10
 > git --version # timeout=10
 > git ls-remote -h git@github.com:bmuschko/todo-spring-boot.git # timeout=10
Fetching upstream changes from origin
 > git config --get remote.origin.url # timeout=10
 > git fetch --tags --force --progress origin +refs/heads/*:refs/remotes/origin/* --prune
Checking branches...
  Checking branch master
      ‘Jenkinsfile’ found
    Met criteria
Scheduled build for branch: master
Processed 1 branches
[Thu Jul 18 09:23:57 MDT 2019] Finished branch indexing. Indexing took 4 sec
Finished: SUCCESS

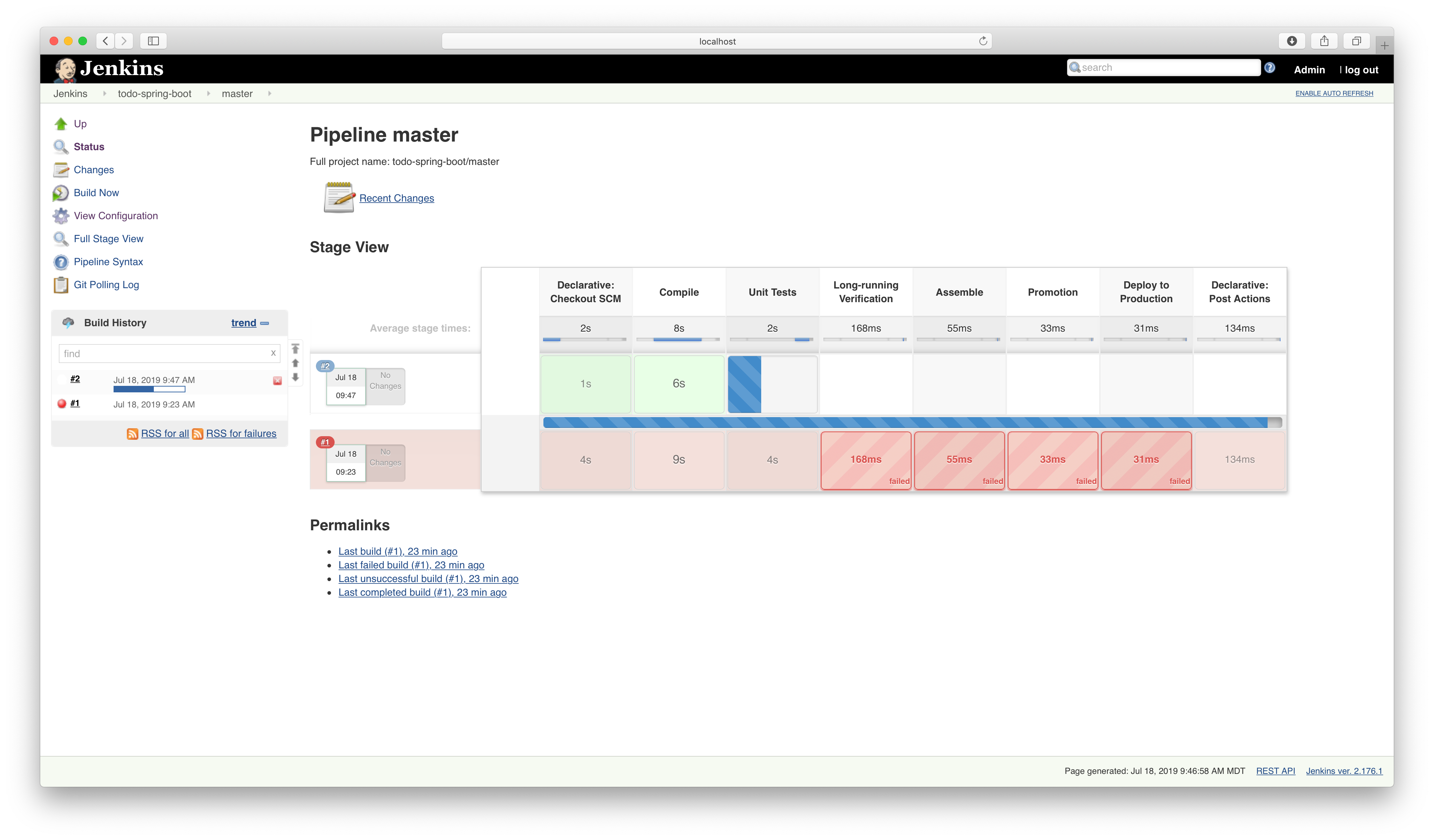

You can see the different stages of the pipeline in the standard view.

You can see the different stages of the pipeline in the standard view.

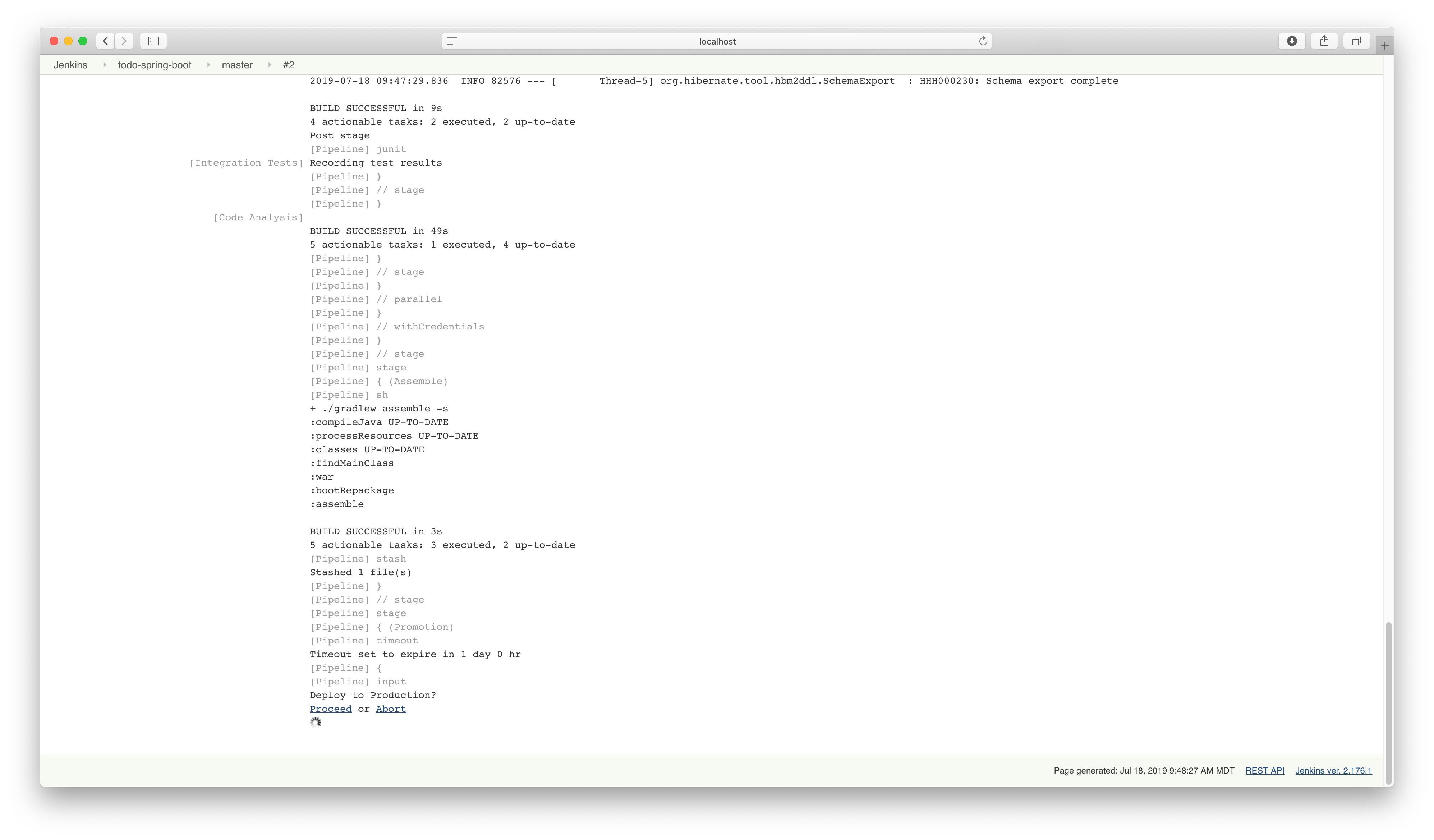

To console output allows for triggering or aborting the manual deployment step.

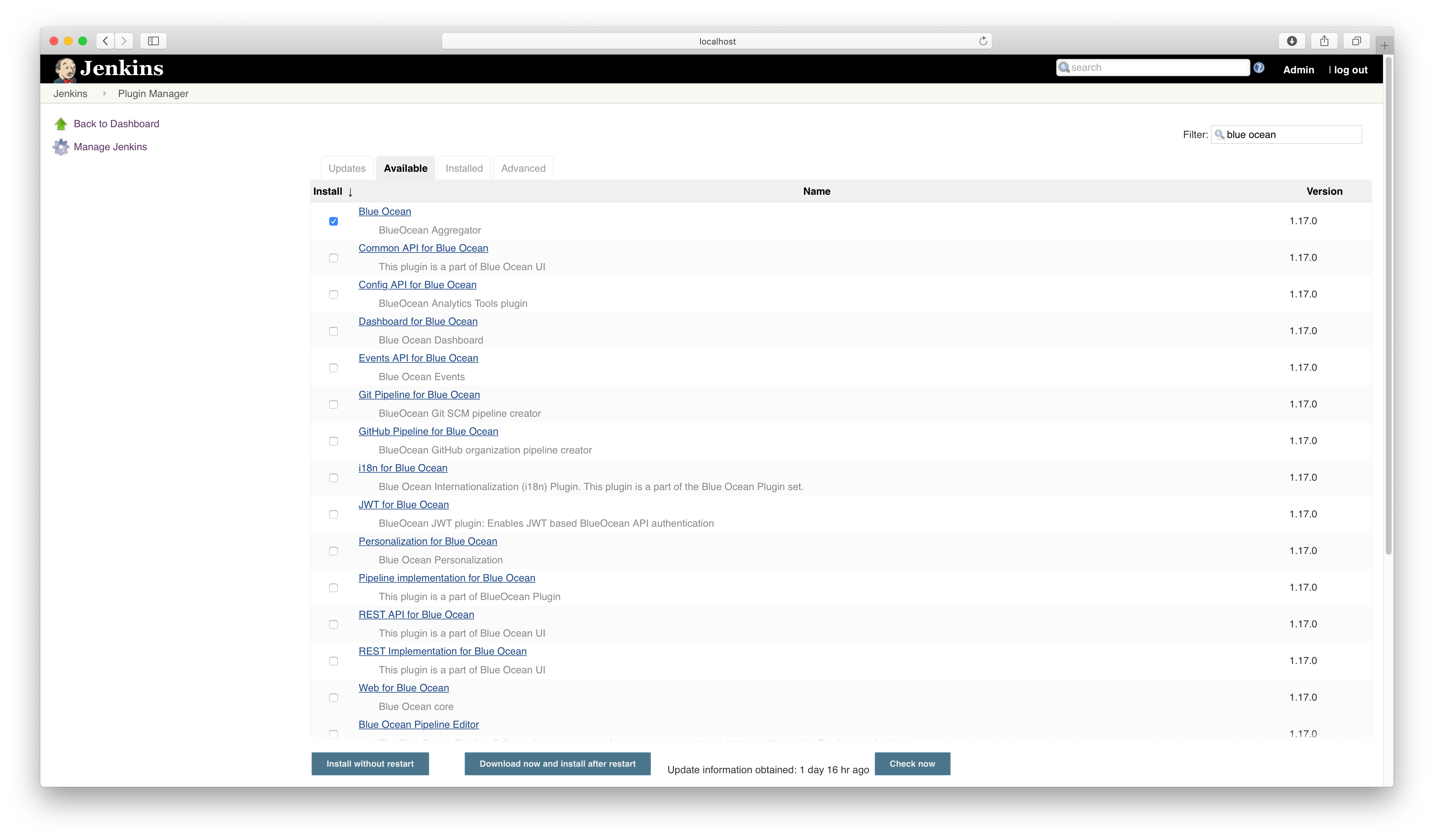

Install the Blue Ocean plugin.

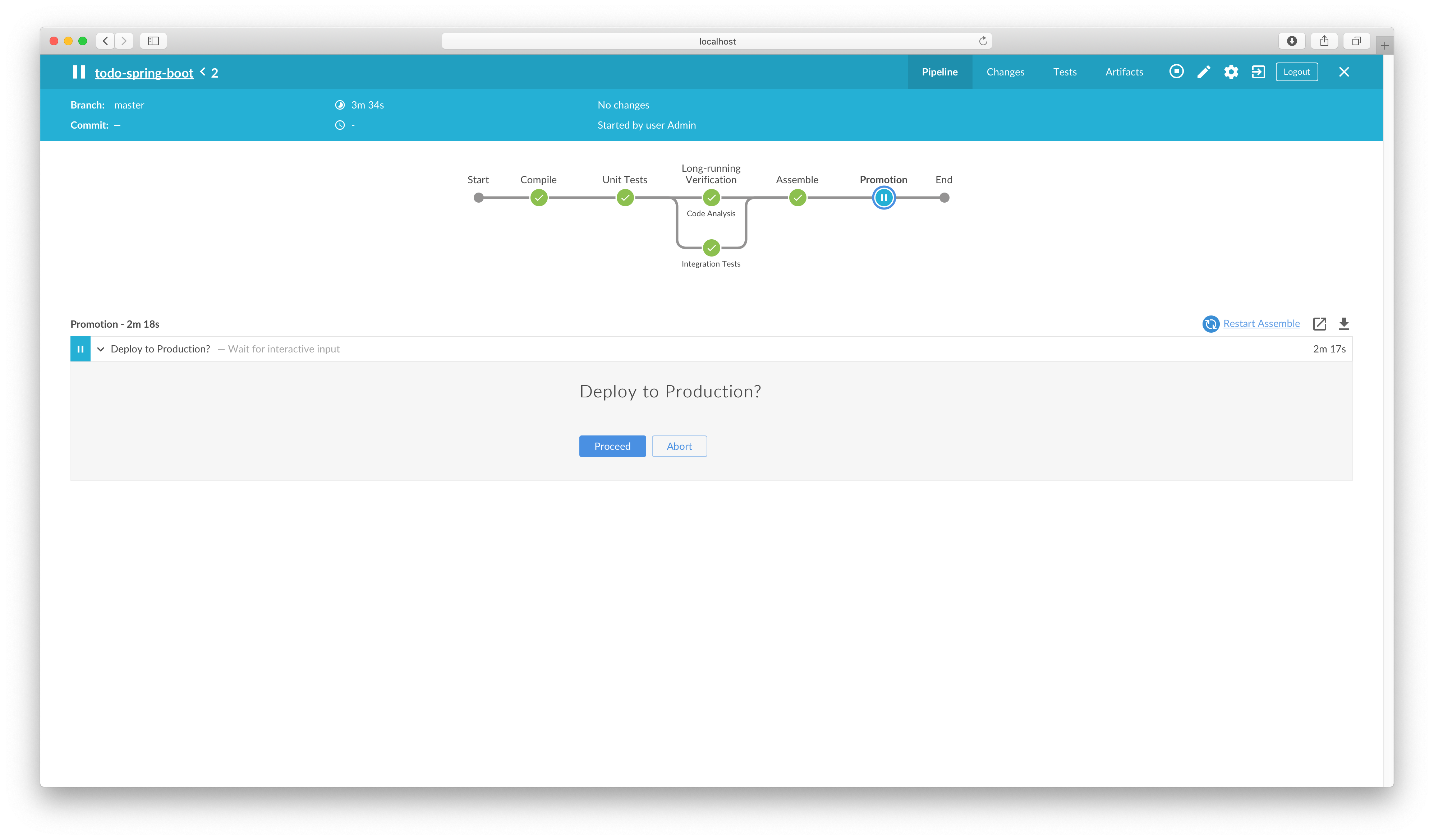

The Blue Ocean pipeline view offers a UI element for triggering a manual step.

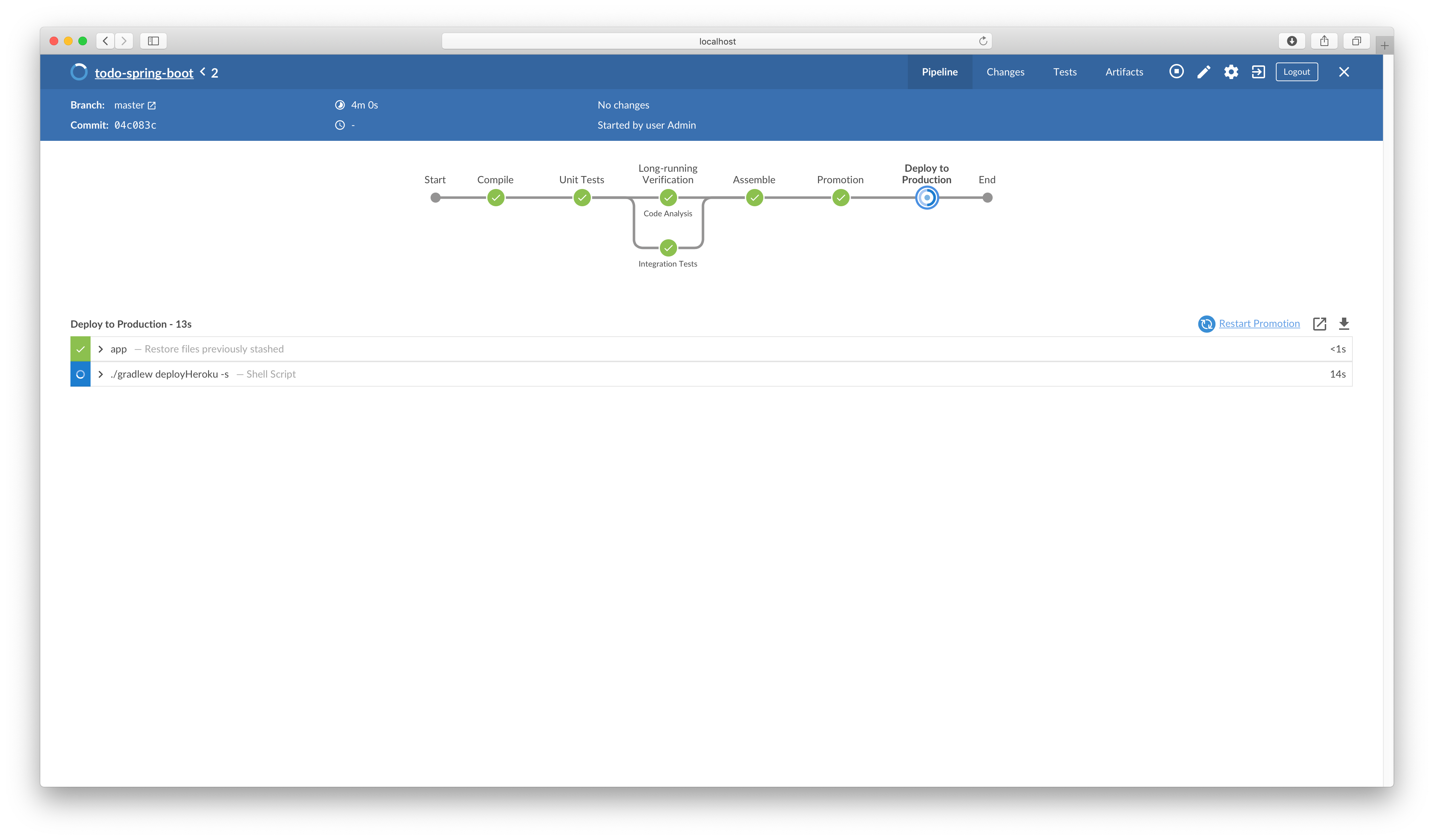

Press the button for processing with the manual step.

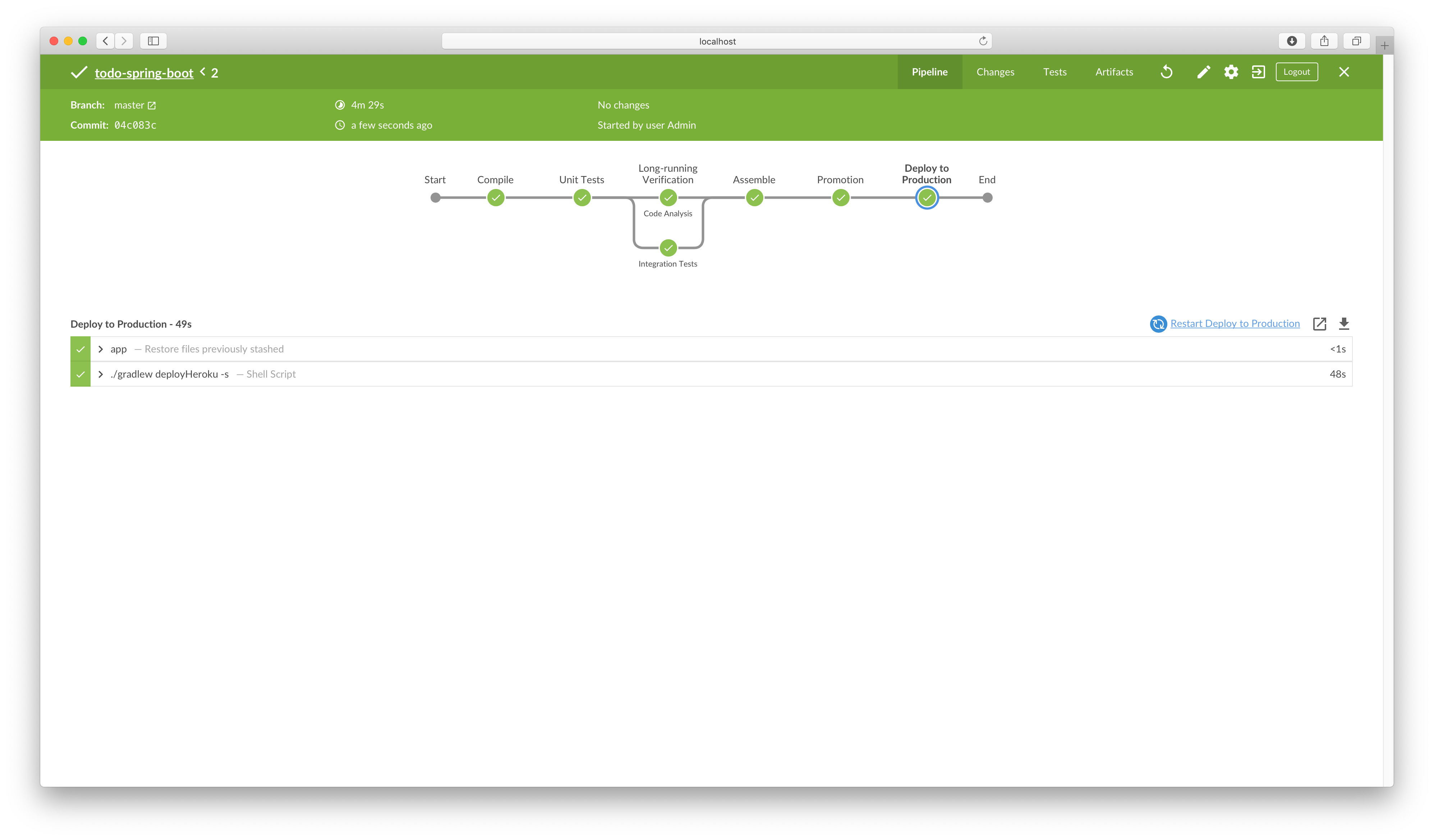

The finished pipeline in Blue Ocean.

Check out the repository and push a new branch.

$ git clone git@github.com:bmuschko/todo-spring-boot.git
Cloning into 'todo-spring-boot'...
remote: Enumerating objects: 230, done.
remote: Total 230 (delta 0), reused 0 (delta 0), pack-reused 230
Receiving objects: 100% (230/230), 108.69 KiB | 452.00 KiB/s, done.
Resolving deltas: 100% (105/105), done.
$ cd todo-spring-boot
$ git branch bugfix
$ git checkout bugfix
Switched to branch 'bugfix'
$ git push origin bugfix
Total 0 (delta 0), reused 0 (delta 0)
remote:
remote: Create a pull request for 'bugfix' on GitHub by visiting:
remote:      https://github.com/bmuschko/todo-spring-boot/pull/new/bugfix
remote:
To github.com:bmuschko/todo-spring-boot.git
 * [new branch]      bugfix -> bugfix

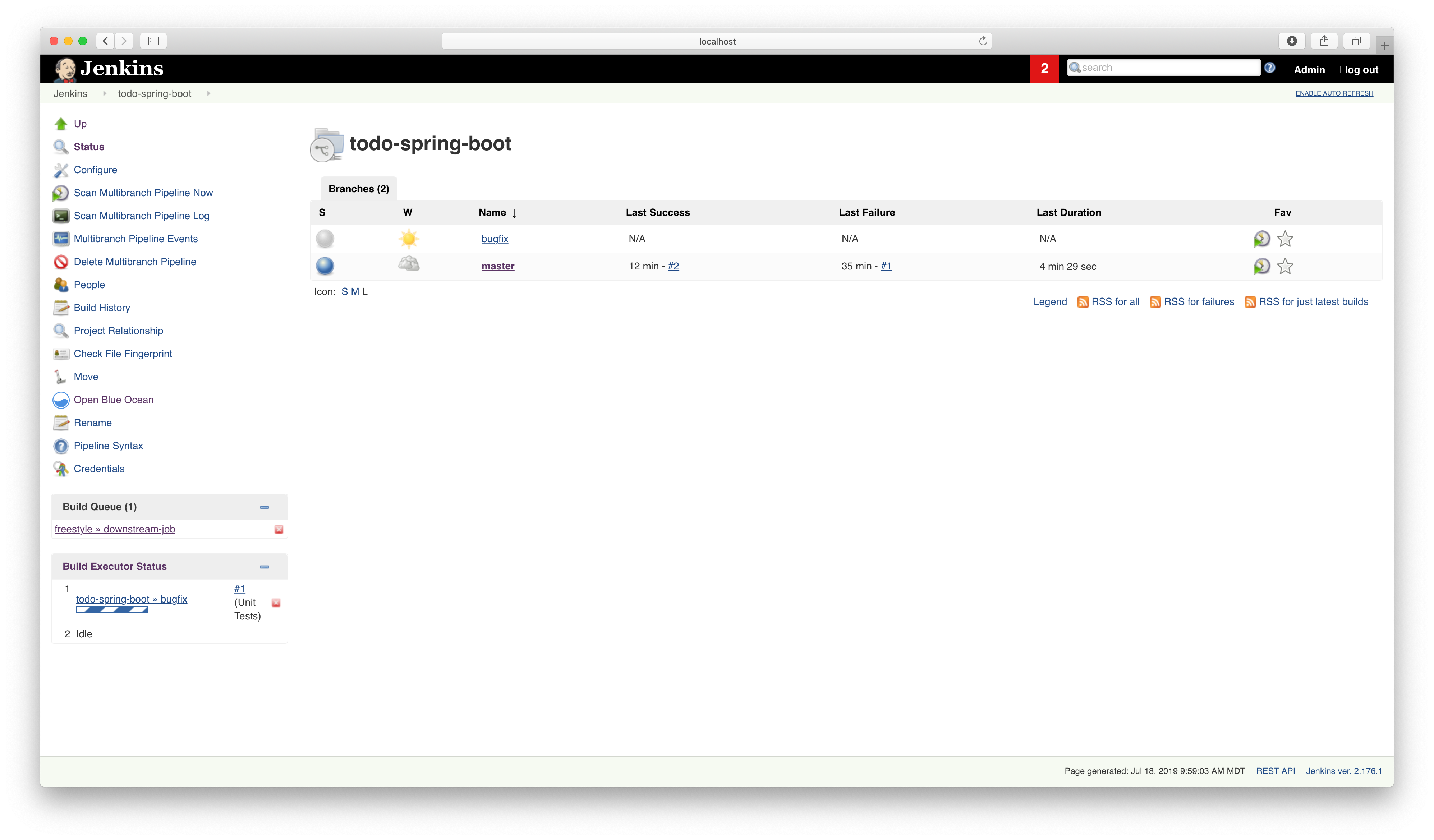

After scanning the repository, the new branch will be available and was triggered to build automatically.
