Key CI/CD/Jenkins Concepts and their Usage

Using the REST API for common operations

  1. Create a new user named buildbot.
  2. Add adminstration permissions for the user.
  3. Log in with user buildbot.
  4. Generate the API token for the user.
  5. Generate a Jenkins crumb from the command line.
  6. Export the environment variables JENKINS_CRUMB and JENKINS_API_TOKEN with the correct values.
  7. Trigger a build of the job gradle-initializr with a curl command using the REST API.
  8. Disable the job gradle-initializr with a curl command using the REST API.
  9. Reenable the job gradle-initializr with a curl command using the REST API.
  10. Download the Jenkins CLI client.
  11. Trigger the build of the job gradle-initializr with a curl command using the Jenkins CLI.
Show Solution

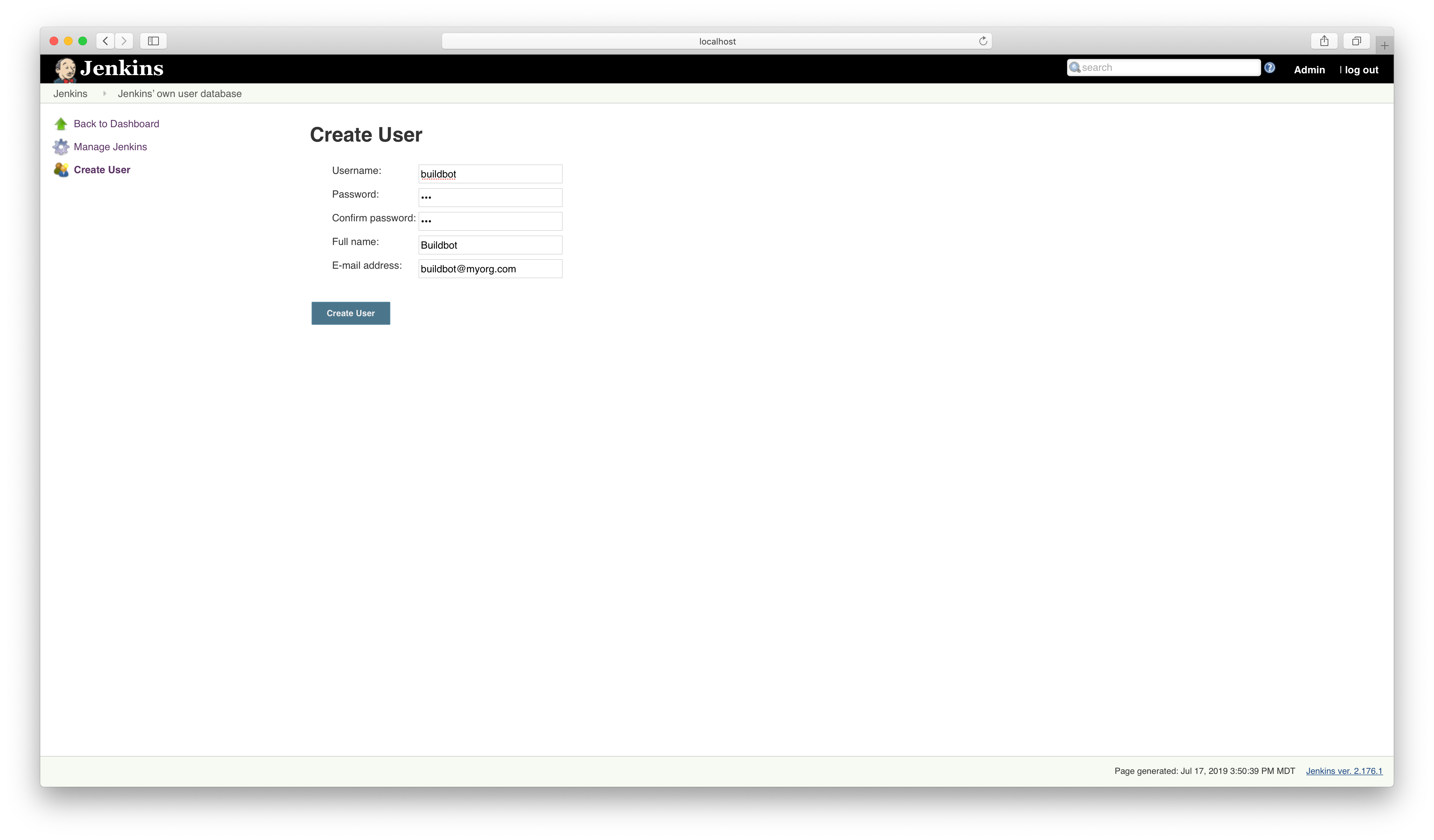

Create the new user.

Create User

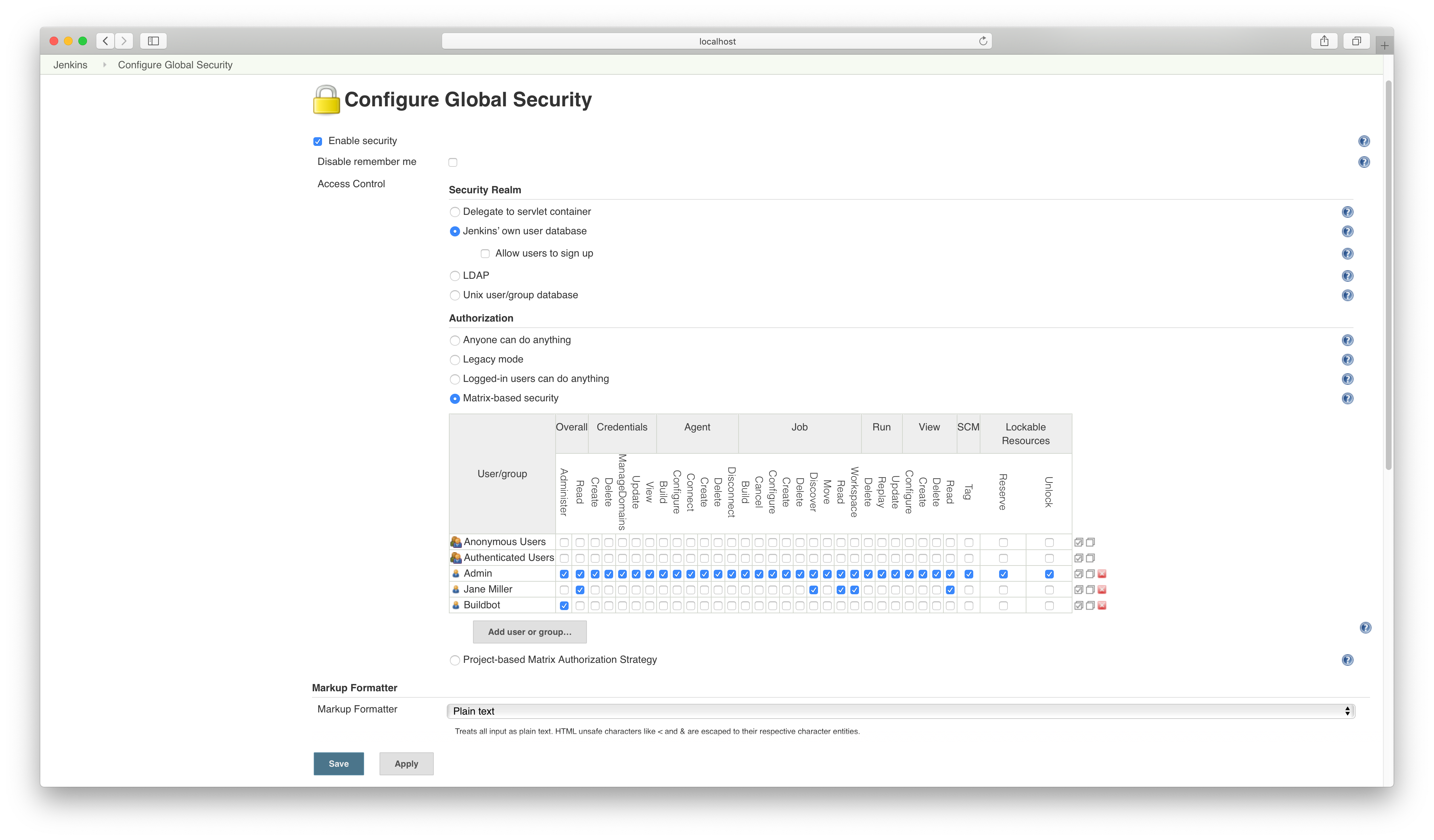

Add user permissions.

User Permissions

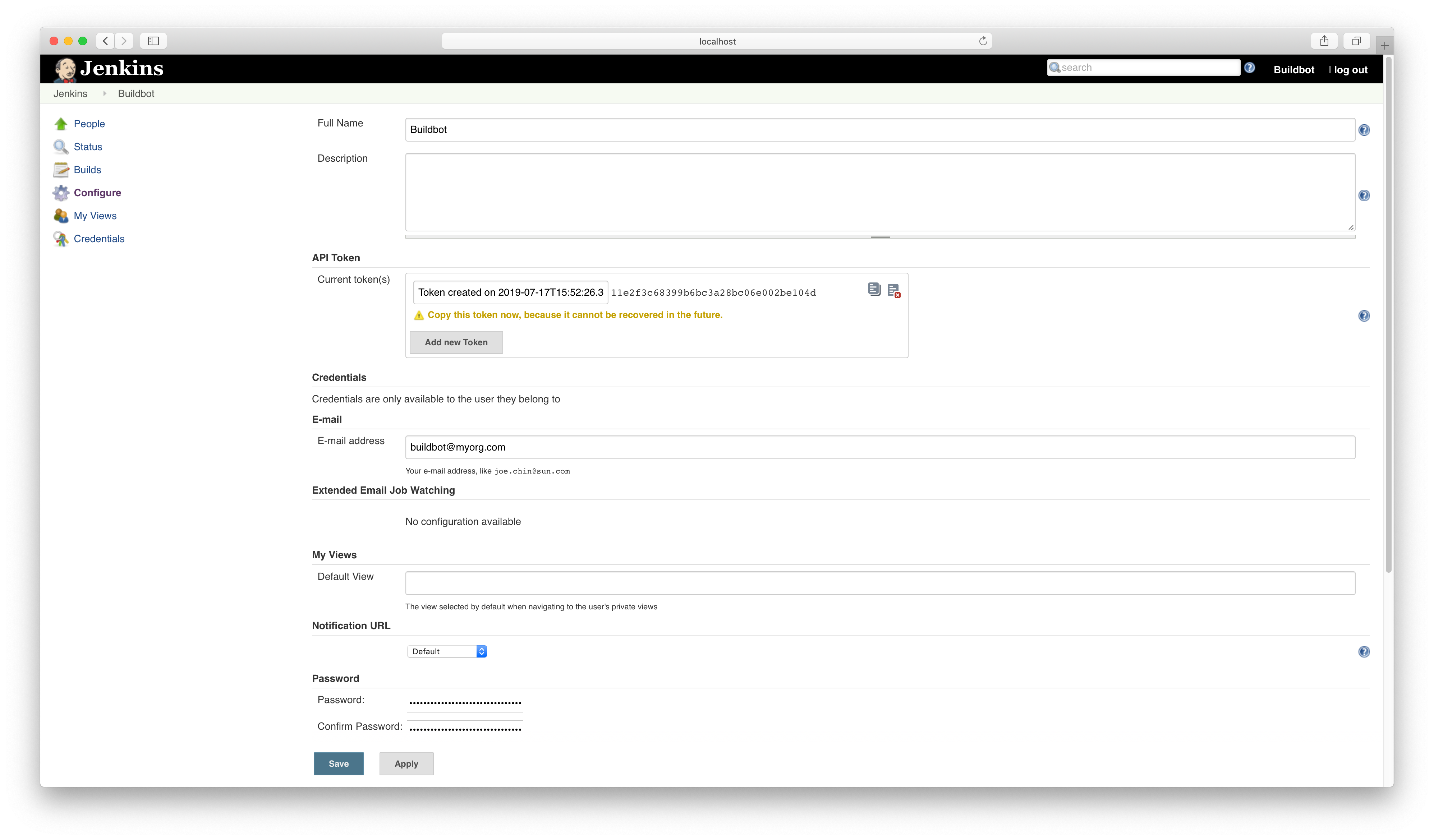

Generate the API token.

API Token

Generate the Jenkins crumb from the CLI.

$ curl -u "buildbot:pwd" 'http://localhost:8080/crumbIssuer/api/xml?xpath=concat(//crumbRequestField,":",//crumb)'
Jenkins-Crumb:890d0b4c9c1b111deb55b196813a0ae1
$ export JENKINS_CRUMB=Jenkins-Crumb:890d0b4c9c1b111deb55b196813a0ae1
$ export JENKINS_API_TOKEN=11e2f3c68399b6bc3a28bc06e002be104d

Trigger a build with the curl command.

$ curl -X POST -H "$JENKINS_CRUMB" http://buildbot:$JENKINS_API_TOKEN@localhost:8080/job/gradle-initializr/build

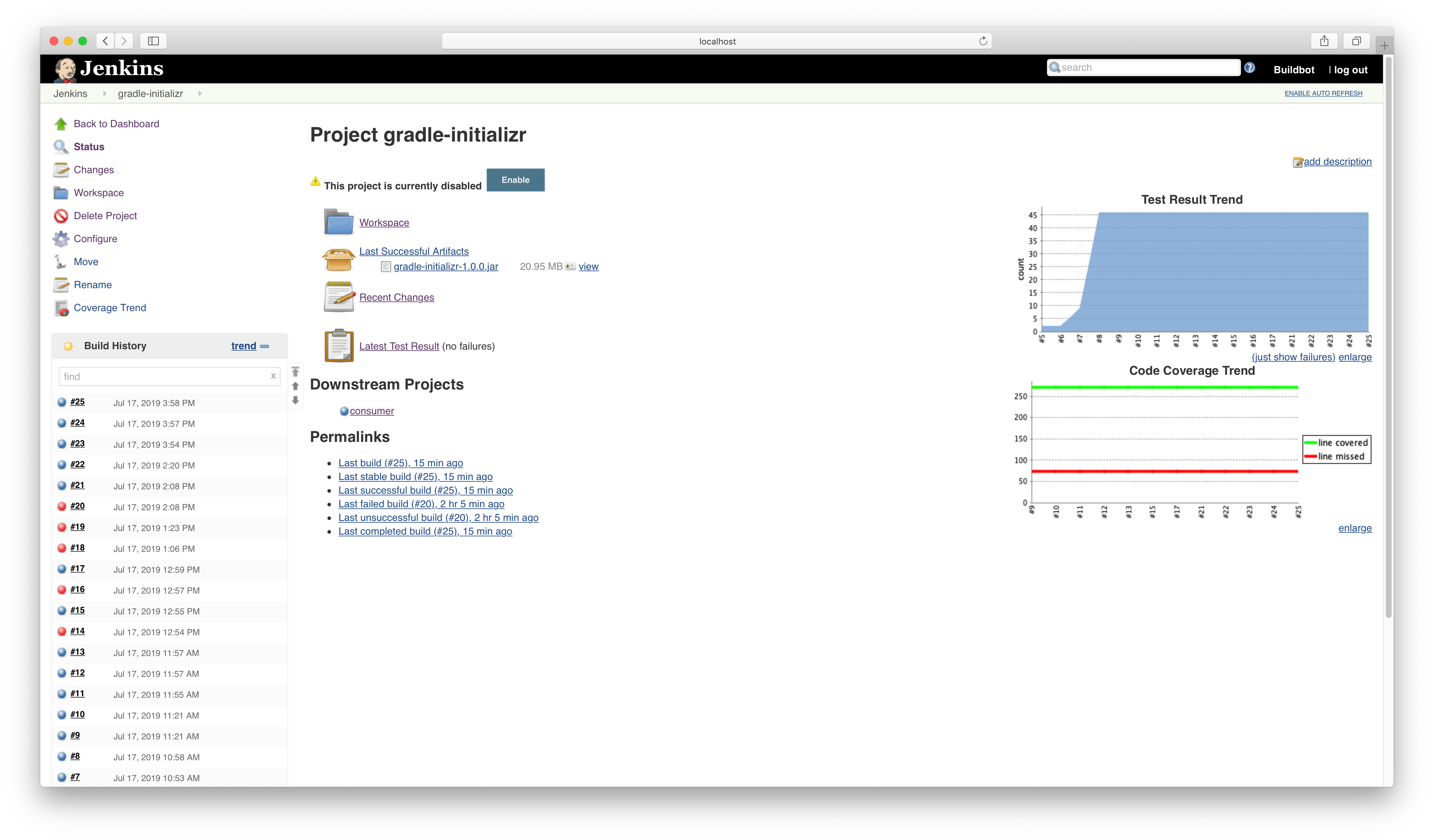

Disable the job via the REST API. You will see that the job indicated its status.

$ curl -X POST -H "$JENKINS_CRUMB" http://buildbot:$JENKINS_API_TOKEN@localhost:8080/job/gradle-initializr/disable

Disabled Job

Reenable the job.

$ curl -X POST -H "$JENKINS_CRUMB" http://buildbot:$JENKINS_API_TOKEN@localhost:8080/job/gradle-initializr/enable

Download the Jenkins URL by calling the URL localhost:8080/jnlpJars/jenkins-cli.jar from the browser.

In the terminal, navigate to the directory that contains the Jenkins CLI JAR file. Use the Jenkins CLI to trigger a build with the correct command. This simply provide the password instead of the API token.

$ java -jar jenkins-cli.jar -s http://localhost:8080 -auth buildbot:pwd build gradle-initializr
